01
Sequin Device
Integrates decorative sequins directly into the embroidery process, allowing you to create more refined, embellished designs with greater ease.
4-Head Format
A Practical Step Into Multi-Head Embroidery Production
Scalable Output
MULTI HEADS EMBROIDERY MACHINE

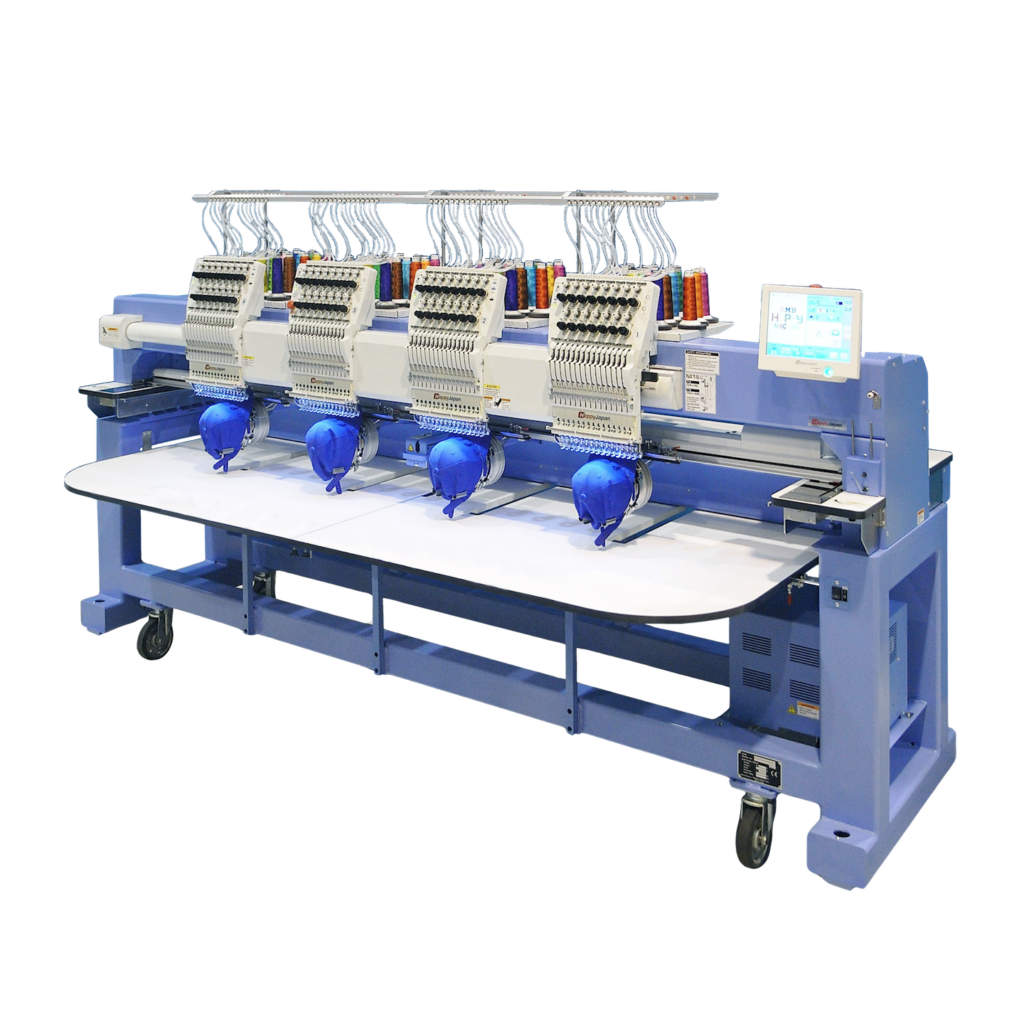

HCR3 (4 Heads)
Preferred model
Request demo
Available on request
Starting from:
£11,495.00 + VAT
HCR3 (4 heads) Tech Specs
Ideal for growing embroidery businesses, commercial studios, and production teams that need more capacity than a 2-head setup, the HCR3-1504 is built for those who want the efficiency of a 4-head machine, reliable industrial performance, and greater day-to-day output in a scalable multi-head format. It is especially well suited for medium production runs, commercial embroidery work, and businesses looking to increase productivity while maintaining flexibility and control.
Embroidery Machine
HCR3 (4 Heads)
- Heads
- 4
- Needles / Colours:
- 15
- Needles Distance:
- 360mm
- Embroidery Area:
- 450 × 360 mm
- Cap Frame:
- 70 × 180 mm
- Wide Cap Frame:
- 80 × 360 mm
- Dimensions:
- 2280 × 1510 × 1740 mm
- Weight:
- 560 kg
- Power Consumption
- 340 W
- Frequency:
- 50/60 Hz
- Power Supply:
- Single Phase 200–240V
- Stitch Length:
- 0.1 - 12.7 mm
- Max Speed (Tubular):
- 1,100 s.p.m.
- Max Speed (Cap):
- 1,000 s.p.m.
- LCD Touch Screen:
- 999 pattern memory / 40,000,000 stitches memory
- USB & Mouse Support:
- Included
- LAN / USB Connectivity
- Included
- Mobile App:
- Happy Bell (Android)
- Cross-Type Laser Position Marker:
- Included
- One-Point Frames:
- Optional extra
- Built-in Bobbin Thread Winder:
- Included
- Barcode Reader Interface:
- Included
- Arch Editing:
- Included
- Auto Angle Adjustment:
- Included
Explore Our
Machine Features
02
Borer Device
Creates precise fabric cut-outs and stitches neatly around them, making it ideal for lace-style embroidery and intricate decorative detailing.
03
Zigzag Cording Device
Applies and secures decorative cord onto the fabric, adding texture, dimension and a more elevated finish to embroidery.
04
PC Connection : LAN/USB
Direct PC connection via LAN or USB makes it easy to transfer designs and integrate the machine into your existing workflow, whether used individually or across a network.
05
USB Port: USB Memory
Load embroidery patterns directly from a USB memory device and mouse connection for a convenient and flexible way to manage designs at the machine.
06
Pattern Transfer with HAPPY LINK/LAN
Included PC communication software helps you edit and transfer embroidery patterns efficiently, with HAPPY LINK/LAN supporting a more connected production setup.
Ideal for start-ups
Compare our models
HCR3 embroidery machines
Midwest is the perfect partner to help you start and grow your embroidery business — whether you're new to the industry or ready to scale your operation.
4 Heads
- Needles:
- 4
- Speed:
- 1,100 s.p.m.
- Area:
- 450 × 360 mm
- Price:
- £11,495.00
All our machines can be used individually or network together. Happy LAN software is supplied FREE OF CHARGE
Enjoy a smooth start with expert installation and software setup included.
More Than a Machine. A Partner.
You also gain the backing of 35 years of experience in industrial embroidery.
Free Installation & Delivery
Training & Onboarding
Integrated Workflow Connectivity
Maintenance & Service all over UK & Ireland
Finance options available
Happy Lan Sofwere Included in the Price
Experience a Private Demo at Our Showroom
We invite you to visit us in Manchester for a personal demonstration, where our team will walk you through the machine’s capabilities and explore how it can support the growth of your business.
